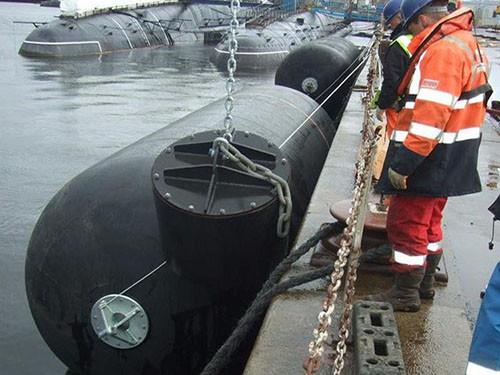

Pneumatic Rubber Fender For Custom Submarines

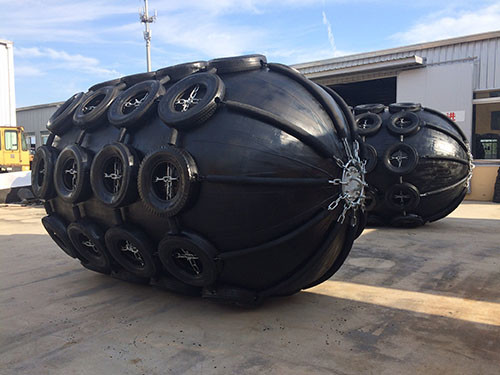

The selection of pneumatic rubber fender tire chain net is as follows:
Tire chain network is divided into: ordinary car tires, truck tires, airplane tires; Aircraft tires have the most wear resistance (but the cost is relatively higher), the use of chains, shackles must be hot-dip galvanized; The protective pipe should be covered outside the chain, which is to protect the chain from wearing the fender body and the hull from being damaged.
Common specification and performance of pneumatic rubber fender 80KPa
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
Large size pneumatic rubber fender mode of transportation:
Large yokohama pneumatic fender often encounter the problem of over-wide and over-high containers being unable to be shipped during transportation. In fact, we can release the gas on the ship's fender and then fold it, so that neither the container nor the trailer will refuse to ship or increase the high transportation cost due to the over-wide and over-high. But the ship fender deflating manufacturers also need experience, can not blindly deflating
Pneumatic ship fender structure:
Pneumatic ship fender is divided into: inner rubber layer, reinforced cord layer, outer rubber layer.
Function of inner adhesive layer: shape for fender, enhance air tightness and ensure no air leakage.
Enhance connection layer: improve the strength of the transverse fender, increase the tensile strength, increase the pressure.
Outer layer: improve the wear resistance of Marine fender, better protect the inflatable rubber fender body, prolong the service life.
Pneumatic rubber fender pressure test
Pneumatic rubber fender picture
After-sales service:
1. All products of the company are produced in strict accordance with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.
4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.
5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of products to various projects.
7. Provide pre-sale, in-sale and after-sale services
