A High-Strength Ship That Can Lift An Boat Lifts AirBags
Marine airbag, ship airbags, launching airbag advantages:
1. The construction of the Save a lot of money Using ship airbags on the way, the water launching is a promising new technology, changing the repaired the ship can only adopt slipway, floating dock, the dock water way, thereby saving the chute, dock, the dock into the constructed a lot of money, and thus reduce the upfront costs of the construction yard.
2, greatly improve the ability of shipyard built Because the traditional way of fluctuation restricted the shipyard's production capacity, use of Marine airbags flexible fluctuation radically changed only use slipway, dock in the work of the traditional way of the ground can be used in the work of then use airbag launching way, so that it can greatly improve the repaired the ability of shipyard.
Boat Lifts AirBags performance and common specifications
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23 |
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
| Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: | According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different. If there are special requirements, can be customized. |
Marine Airbag fittings

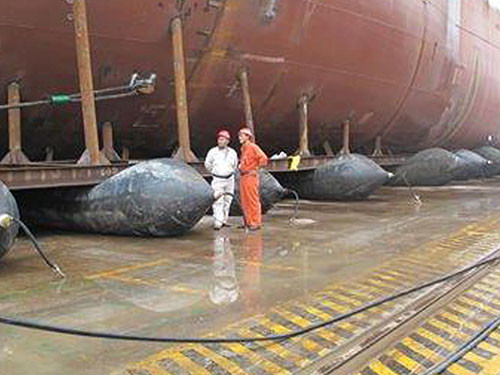

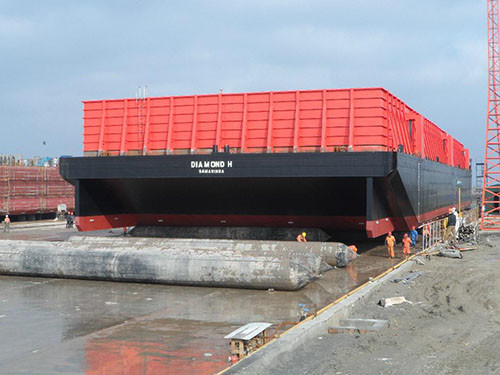

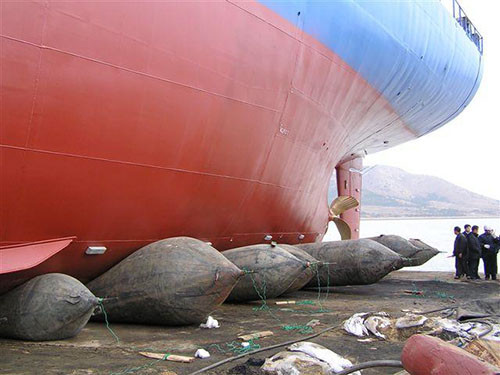

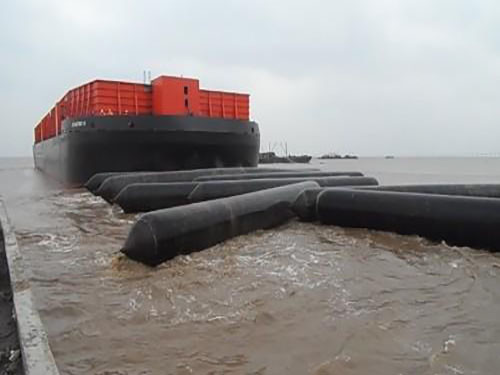

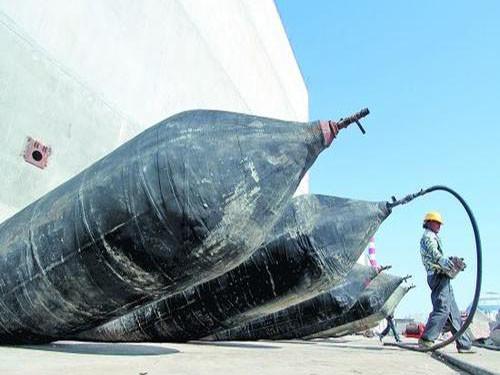

Boat Lifts AirBags to display products
Service tenet:
Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.
4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.
5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of products to various projects.
7. Provide pre-sale, in-sale and after-sale services.
